Yamaha DBR12

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

Specifications:

• Speaker type: 12" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 52Hz - 20kHz
• Nominal coverage H: 90°
• Nominal coverage V: 60°
• LF element: Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
• HF element: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
• Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1000W (LF: 800W HF: 200W) / Continuous: 465W (LF: 400W HF: 65W)
• Maximum output level (1m; on axis): 131dB SPL

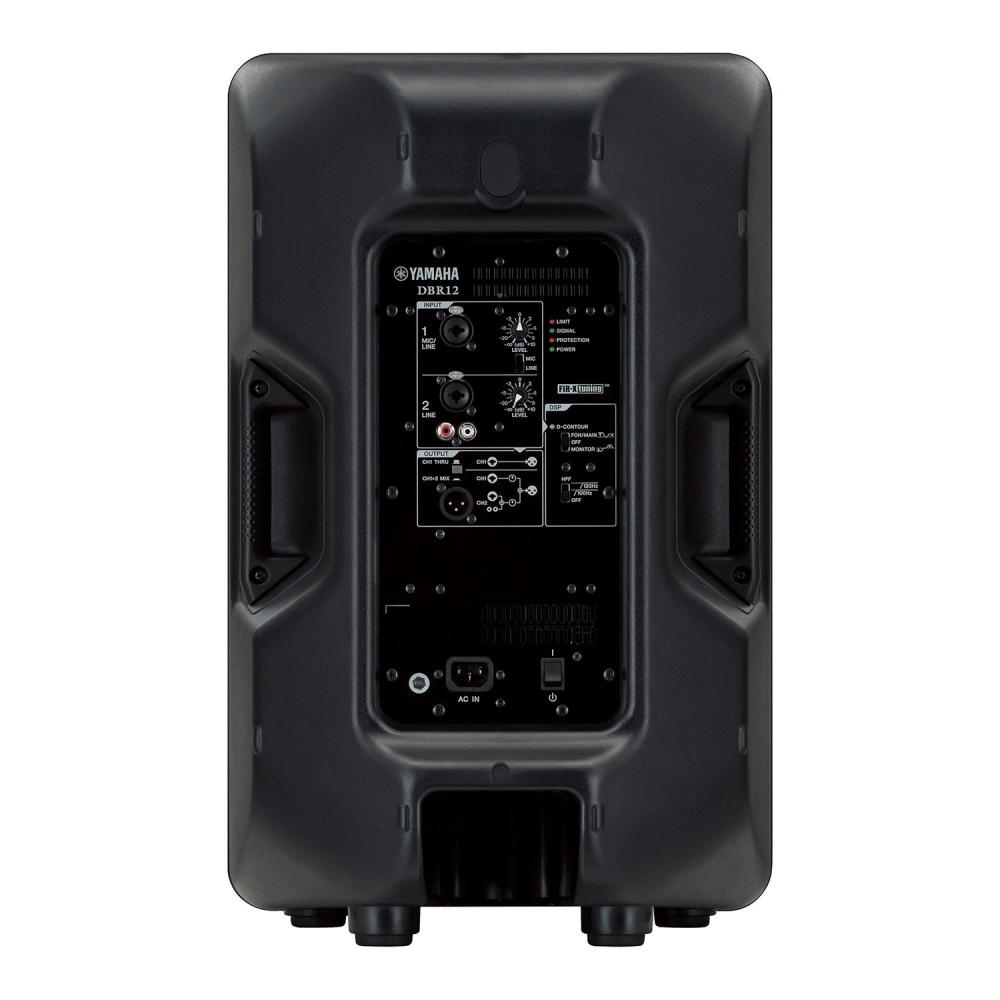

• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors: D-Contour: FOH / Main, Monitor, Off
• Power requirements: 100V - 240V, 50Hz/60 Hz
• Power consumption: 74W
• Flying and mounting hardware: Top x 2, Rear x 1 (Fits for M8 x 15mm eyebolts)
• Pole socket: 35mm
• Dimensions WxHxD: 601 x 376 x 348 mm
• Weight: 19,3 kg
