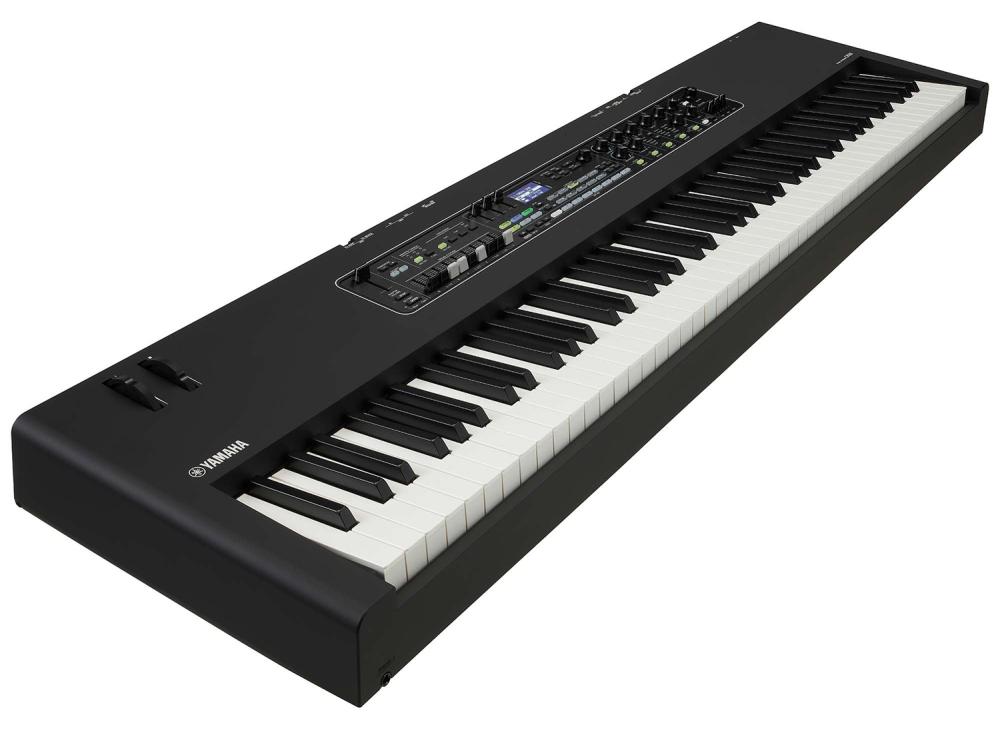

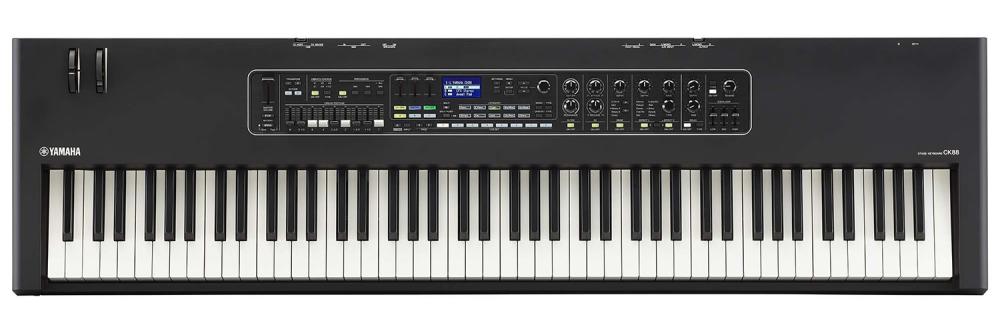

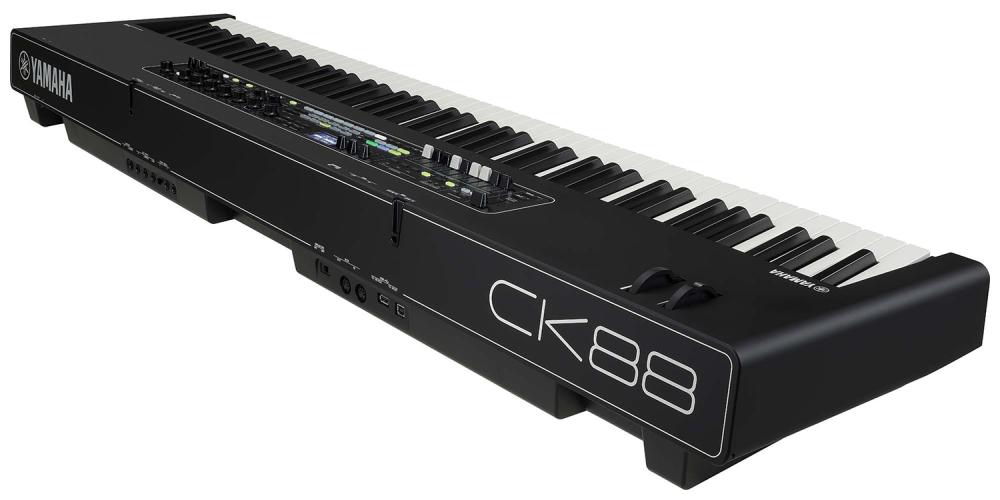

Yamaha CK88

Take your sound where it’s never been before. Anywhere.
CK turns everywhere into a stage or studio with intuitive controls, built-in speakers, and all the sounds you need to create your own sound.

Sound
CK combines the sounds of the Yamaha CP Stage Piano with the organ and synth focused YC Stage Keyboard to give you a totally new sonic palette. All with an intuitive interface that lets you focus on the music, not the menus. You’ll have piano, electric pianos, strings and brass plus a dedicated organ section and modern synth sounds. Onboard special effects to make it your own. There’s even Analog to Digital (A/D) Input to plug in a mic or another instrument, apply effects and record directly to your laptop. Not to mention CK has built-in speakers and batteries to take your new sound to new places. The options are nearly endless.

Control
CK features an intuitive, 1 to 1 interface that gives you the freedom to explore your sound. Everything, from dedicated Organ controls to Synth and Effects controls, is designed to keep you making music instead of diving into menus.

Versatility
All the world’s a stage - or studio. And CK is the portable keyboard ready to play anywhere at a moment’s notice. Take it camping and livestream by a stream. Play in the park. Or on stage in Central Park. Bring it to your neighbor’s BBQ and steal their guitar thunder. All without compromising sound quality or features.

Specifications:

• Number of keys: 88
• Keyboard type: GHS keyboard: matte black keytops
• Tone generating technology: AWM2, AWM (organ flutes)
• Max polyphony: 128
• Number of live set sound: 160 (preset live set sounds: 80)
• Number of voices: 363
• Insertion effect:
• Delay: 4 types
• Reverb: 3 types
• Master EQ: 3-band

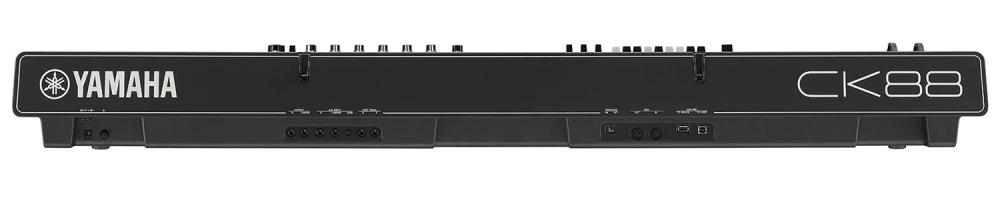

• Line out: [L/MONO]/[R] (6,3 mm, standard phone jacks, unbalanced)
• A/D input: [L/MONO]/[R] (6,3 mm, standard phone jacks)
• Headphones: [PHONES] (6,3 mm, standard stereo phone jack)
• Foot controller: FOOT PEDAL [1]/[2]
• MIDI: MIDI [IN]/[OUT]
• USB: USB [TO HOST]/[TO DEVICE]
• Bluetooth version: 4.1
• Supported profile: A2DP
• Compatible codec: SBC
• Wireless output: Bluetooth class 2
• Maximum communication distance: About 10 m
• Radio frequency (operational frequency): 2401 - 2481 MHz
• Maximum output power (EIRP): 4 dBm
• Type of modulation: FHSS
• USB audio interface: [Sampling Frequency = 44,1 kHz] In: 2 channels (1 stereo channel) Out: 2 channels (1 stereo channel)
• Amplifiers: 6 W × 2
• Speakers: (12 cm × 6 cm) × 2, Switchable ON/OFF
• Display: Full dot LCD (128 x 64 dots)
• Included accessories: AC adaptor, Owner’s Manual
• Adaptor: PA-150B or an equivalent recommended by Yamaha (Output: DC 12V, 1,5 A)
• Batteries: Eight AA size batteries
• Power consumption: 11 W (When using PA-150B AC adaptor)
• Dimensions: 1 333 x 354 x 148 mm
• Dimensions (boxed): 1 520 x 480 x 260 mm
• Weight: 13,1 kg
