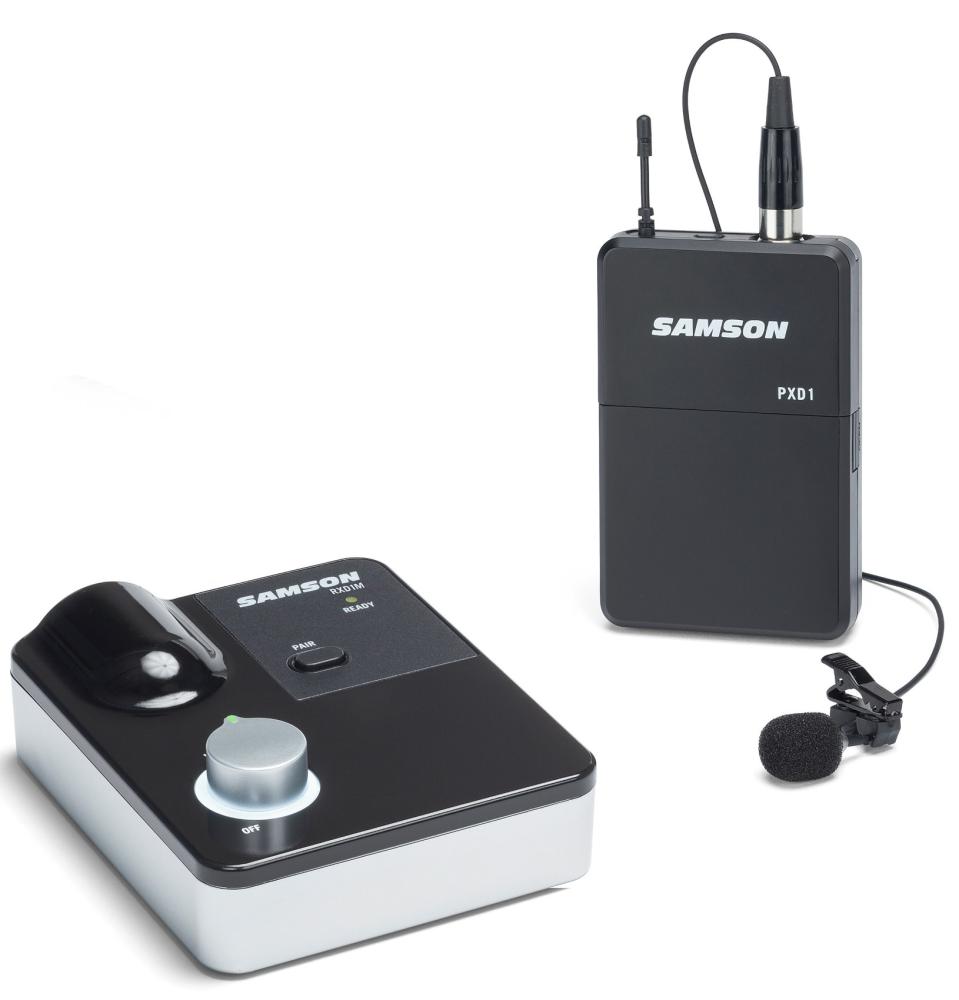

Samson Stage-XPDm Presentation

Samson makes wireless easier than ever with the XPDm Lavalier Digital Wireless System, a unique wireless microphone solution that is ideal for presenters, educators and interviewers. This digital wireless system operates on the 2.4GHz license-free frequency and offers simple setup and professional full-range audio and 100’ of wireless operation at an unbeatable value.

Simple Addition
Easily integrate the XPDm Lavalier System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4” and 1/8” outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching. Turn the RXD1M into a dual-channel system by connecting an additional XPD Series USB digital wireless system via the USB port on the receiver.

Digital Wireless Technology
The XPDm Lavalier System delivers high-quality audio using 2.4GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver and offers a greater signal-to-noise when compared to traditional wireless systems.

Clip-On, Clip-Off
The PXD1 beltpack transmitter allows for 100’ of wireless range and provides up to eight hours of use on two AA batteries. The LM8 Omnidirectional Lavalier Microphone connects with the beltpack transmitter and captures vocals with absolute clarity. A lightweight mic clip is included for low-profile microphone placements on ties, lapels and other articles of clothing as well as a windscreen to reduce P-pops and other unwanted noise.

Specifications:

XPDm Lavalier Digital Wireless System

• Dual-channel, high performance digital wireless system
• Operates on 2.4GHz License-free frequency

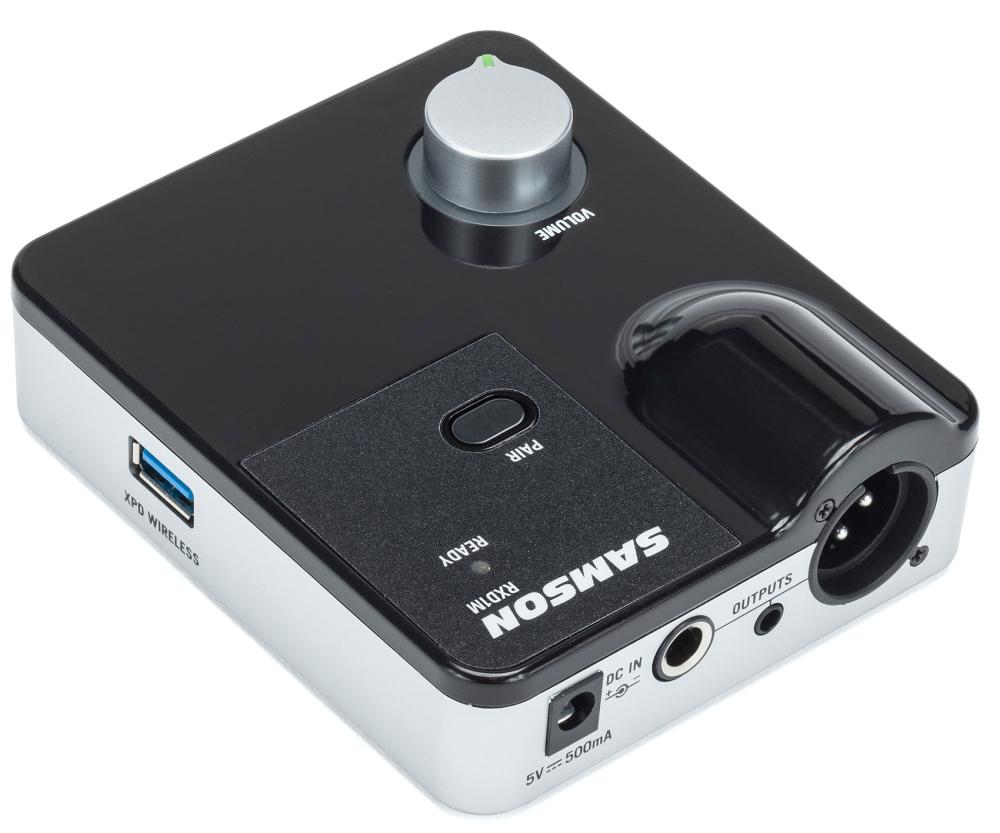

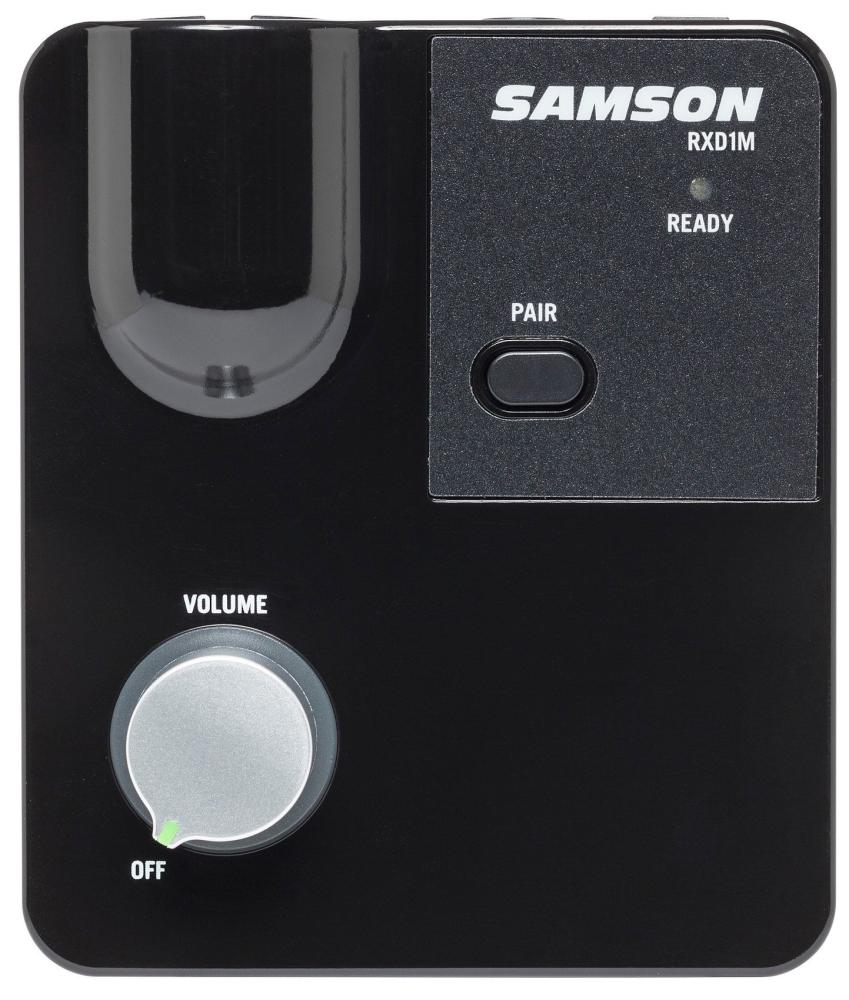

RXD1M Tabletop Receiver

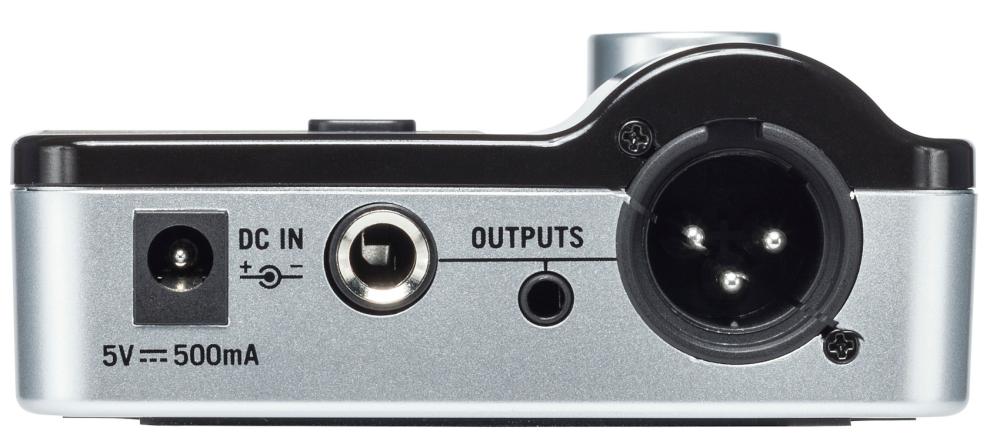

• Balanced XLR, unbalanced ¼” and unbalanced 1/8” outputs
• USB port for adding Samson XPD Series wireless system
• One-touch pairing button
• Rotary volume knob with integral power switch



PXD1 Beltpack Transmitter

• Includes LM8 Omnidirectional Lavalier Microphone
• Offers up to eight hours of battery life using two AA batteries
• 300’ operating range



RXD1M Digital Receiver

• Simultaneous Systems: 2
• Working Range: 100' (30m) line of sight
• Working Frequency: 2.404~2.476GHz
• Modulation type: GFSK
• Audio Frequency Response: 20Hz–16KHz
• T.H.D.: <0.1% (@ 1KHz, -10dBu)
• Signal to Noise: >85dB



Audio Output Level

• From Φ3.5 & Φ6.3 Jack (unbalanced): 5dBu
• From XLR Jack (balanced): 5dBu



Audio Output Impedance

• From Φ3.5 & Φ6.3 Jack (unbalanced): 2KΩ
• From XLR output jack (balanced): 4.5KΩ
• RF Sensitivity: -78dBm/20dB SINAD
• Operating Voltage: 5V/500mA
• Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
• Product Weight: 152g
