Description

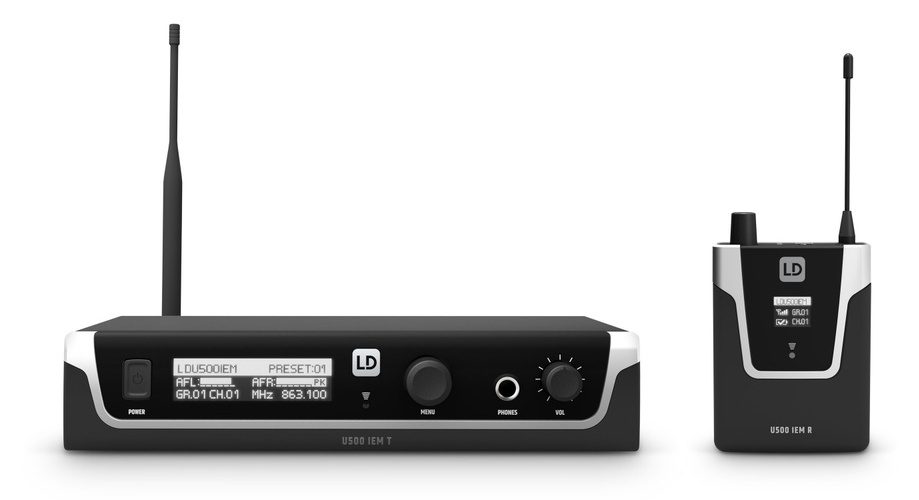

Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500 In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.

U500 In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500 In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.

To deliver pristine, precise audio U500 In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500 In-Ear's noise floor is exceptionally low.

Drawing little current only, the U500 Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.

U500 In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 - 490 MHz, 514 - 542 MHz, 584 - 608 MHz and 655 - 679 MHz bands permit running up to 12 systems simultaneously. In the 823 - 832 MHz + 863 - 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.

Features:

• Reliable in-ear monitoring with more than 100 m range
• 96 available channels
• 2, 10 or 30 mW ERP selectable transmission power
• Convenient infrared frequency syncing
• Individual user name assignment and memory for 10 custom presets
• Extended frequency response
• 3-band EQ with parametric mids
• Switchable limiter
• Stereo, focus and mono modes of operation
• High-contrast OLED display
• Transmitter with direct monitoring headphone output
• Bodypack receiver with three selectable squelch levels
• 10 h of bodypack receiver operation on two AA batteries
• Simultaneous operation of up to 12 systems
• U500 IEM transmitter compatible with U300 IEM bodypacks

Specifications

General:

• Product type: In-ear Monitoring
• Type: Set
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Weight: 0,755 kg

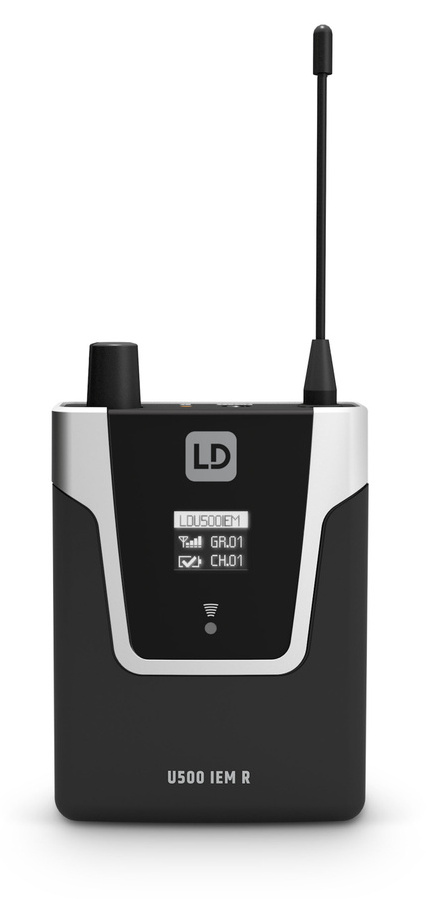

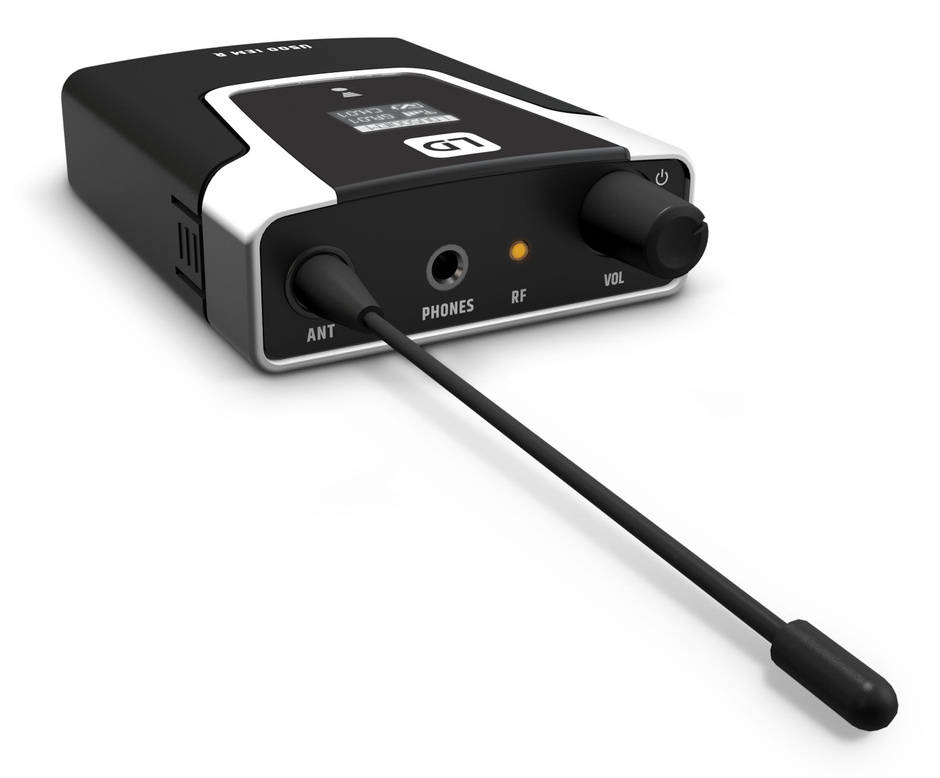

LD Systems U508 IEM R Receiver

• Product type: In-ear Monitoring Accessories
• Type: Receivers
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, mono/stereo
• Frequency response: 40 - 16000
• Audio output: 3.5 mm TRS
• Max. audio output level: 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
• Controls: Down, On / Off, Up, volume
• Indicators: Multifunctional OLED-Display, RF (LED)
• Power supply: 2 x 1.5 V AA
• Operating time: < 10 hours
• Width: 64 mm
• Height: 100 mm
• Depth: 24 mm
• Weight: 0,095 kg
• Accessories (included): 2 x AA batteries, Antenna
• Features: Battery status LED

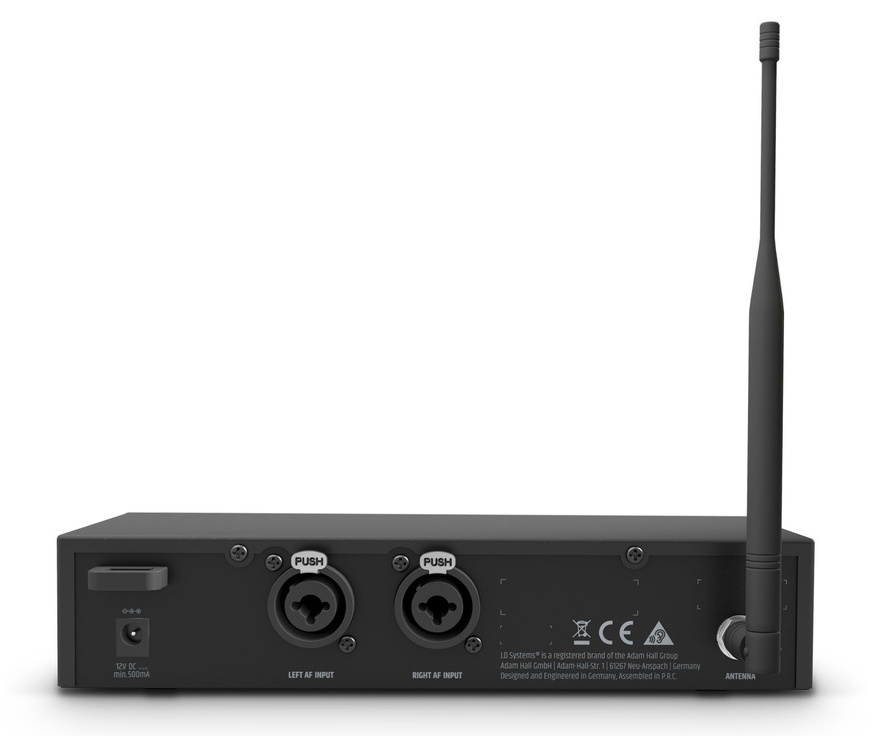

LD Systems U508 IEM T Transmitter

• Product type: In-ear Monitoring Accessories
• Type: Transmitters
• Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, mono/stereo
• Modes of operation: focus/mono/stereo
• Frequency response: 40 - 16000
• Rated HF output power: 10 mW, 2 mW, 30 mW
• Total Harmonic Distortion (THD): 0.3 %
• Dynamic range: 88 dB
• Inputs: 2
• Controls: Menu selector Button, Power On/Off, volume headphones
• Input connectors: Combo TRS 6.3 mm, XLR (balanced)
• Input impedance (kOhms): 12 kOhm
• Indicators: Multifunctional OLED-Display
• Power supply: 12 - 18 V DC
• Width: 212 mm
• Antenna connector: BNC
• Height: 43 mm
• Depth: 123 mm
• Weight: 0,641 kg
• Accessories (included): 19" Rack mount kit, BNC-Antenna, power adapter
