Description

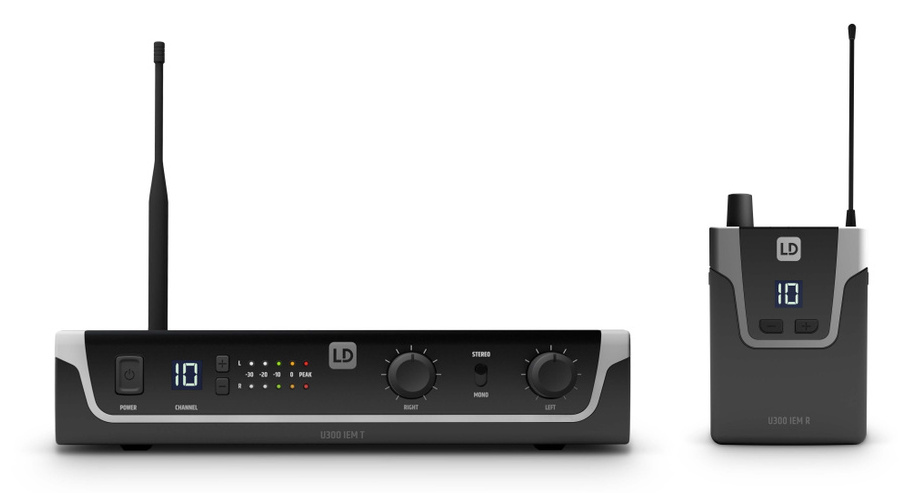

We have developed the wireless U300 in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300 in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

The U300 in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

The U300 bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

Features

• Reliable wireless transmission with a range of up to 100 m
• Low-reaching frequency response
• 12 selectable channels
• Choice of stereo or mono mode
• Up to 6 systems can be used simultaneously
• 10-hour bodypack operating time with two AA batteries
• Unlimited number of bodypacks can be set to the same transmission frequency
• Channel and RF reception displayed on bodypack
• Transmitter in rugged metal casing with stereo level display
• Removable antenna with BNC connection
• 19” rack assembly kit included

Specifications

General:

• Product type: In-ear Monitoring
• Type: Set
• Transmission frequency range: 584 - 608 MHz
• Weight: 1,51 kg

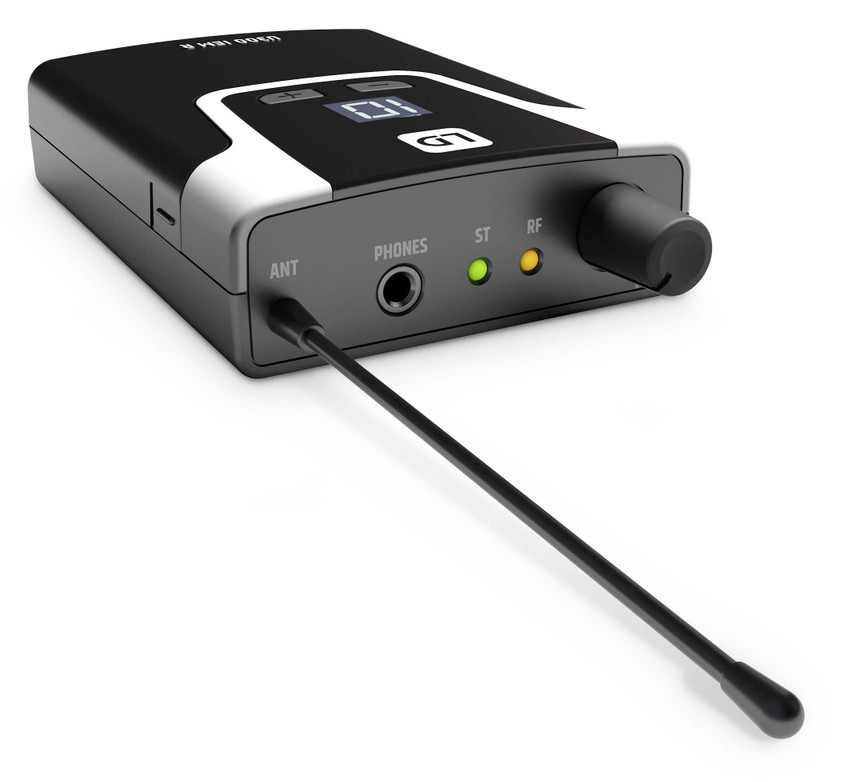

LD Systems U305 IEM R Receiver

• Product type: In-ear Monitoring Accessories
• Type: Receivers
• Transmission frequency range: 584 - 608 MHz
• Channels: 12
• Transmission method: FM, mono/stereo
• Frequency response: 50 - 16.000
• Total Harmonic Distortion (THD): 0.25 %
• Audio output: 3.5 mm TRS
• Minimum connected impedance: 16 Ohm(s)
• Max. audio output level: 100 (@ 16 Ohms load capacity) mW, 73 (@ 33 Ohms load capacity) mW
• Antenna connector: Fixed to housing
• Controls: Channel down, Channel up, On/off switch, volume control
• Indicators: LC display, RF (LED)
• Power supply: 2 x 1.5 V AA
• Operating time: < 10 hours
• Width: 64 mm
• Height: 103 mm
• Depth: 24 mm
• Weight: 0,085 kg
• Features: battery status LED, incl. batteries

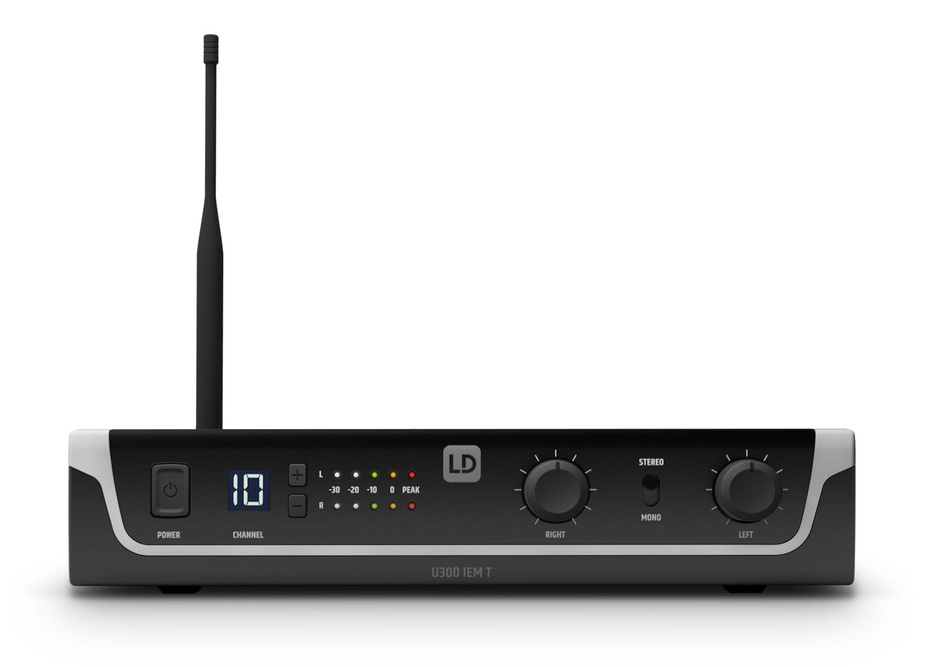

LD Systems U305 IEM T Transmitter

• Product type: In-ear Monitoring Accessories
• Type: Transmitters
• Transmission frequency range: 584 - 608 MHz
• Channels: 12
• Transmission method: FM, mono/stereo
• Modes of operation: FM, mono/stereo, mono/stereo
• Frequency response: 50 - 16.000
• Rated HF output power: 10 mW
• Total Harmonic Distortion (THD): <0,5%
• Signal-to-noise ratio: 90 dB
• Dynamic range: 88 dB

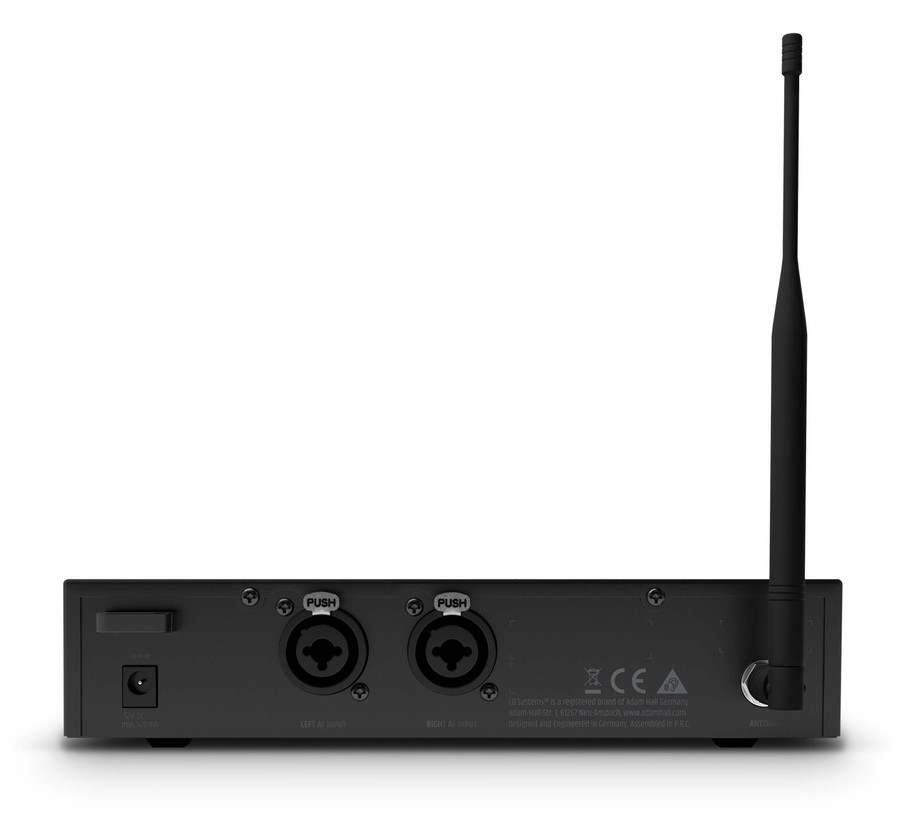

• Antenna connector: BNC
• Inputs: 2
• Controls: input level, Mono/stereo switch, Power On/Off
• Input connectors: 6.3 mm jack, XLR
• Input impedance (kOhms): 8.5 kOhm
• Indicators: LC display
• Input sensitivity: -4.5 dbu
• Power supply: 12 - 18 V DC
• Width: 212 mm
• Height: 43 mm
• Depth: 123 mm
• Power consumption: 1.7 W
• Weight: 0,66 kg
• Accessories (included): 19" Rack mount kit, BNC-Antenna, Power supply
