Description

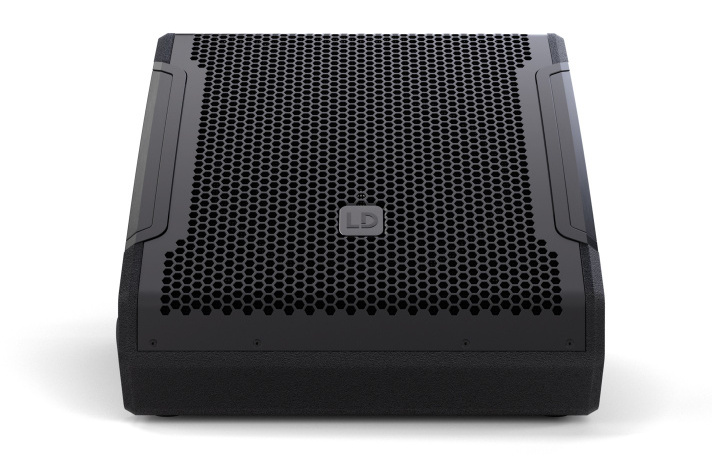

The MON 10 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks.

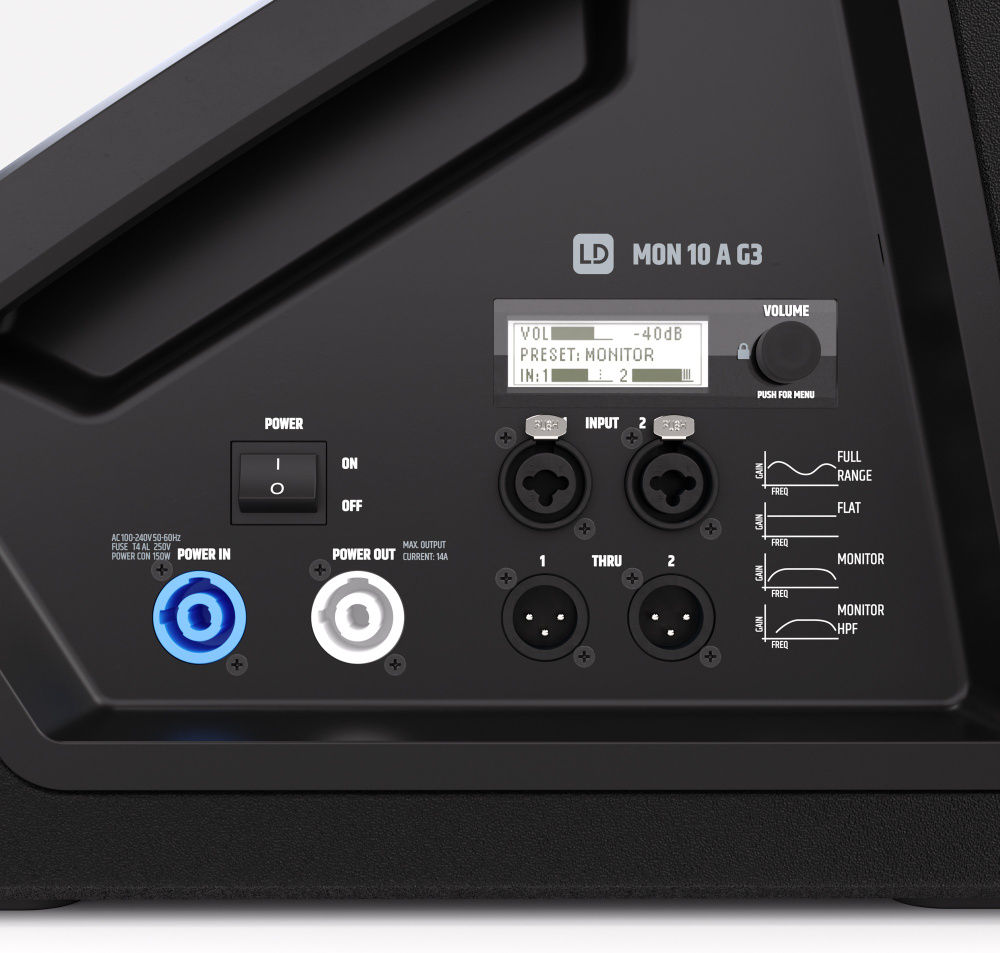

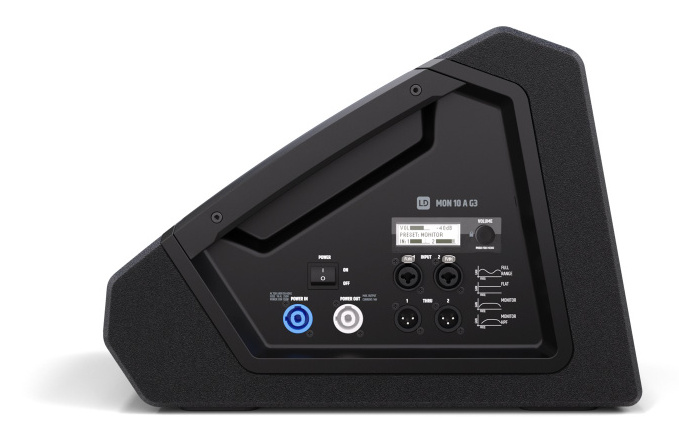

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Features:

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 126 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 10" woofer with 2.5" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets and delay function
• PowerCON compatible loop-through professional power connection

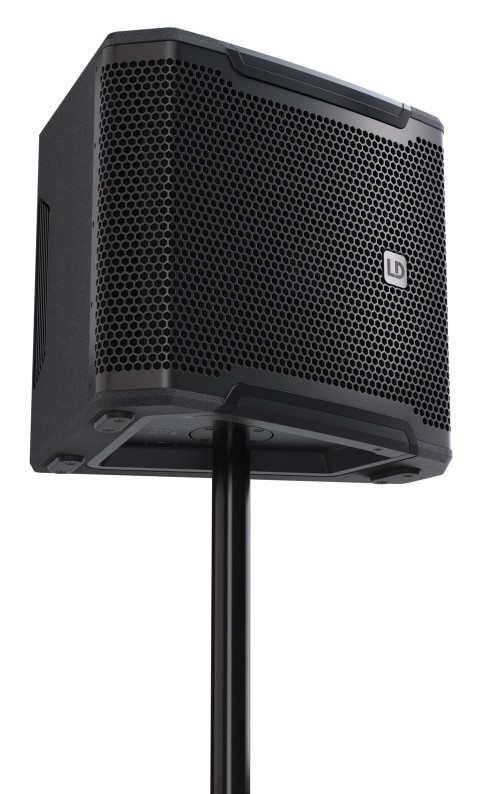

• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

Specifications

General:

• Product type: Stage monitors
• Type: Powered
• Color: Black
• System output (RMS): 300 W
• System output (Peak): 1200 W
• Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
• Max. SPL Peak (Sine burst): 126 dB (fullspace @1m, 10% THD)
• Frequency response (-3 dB): 72 - 18000 Hz
• Frequency response (-10 dB): 58 - 20000 Hz
• Crossover frequency: 1700 Hz
• Monitor angle: 33°
• Dispersion (H x V): 50° x 90°
• Width: 380 mm
• Depth: 426 mm
• Height: 305 mm
• Features: 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
• Weight: 15,21 kg

Low/mid woofer:

• Low/mid Woofer dimensions: 10 "
• Woofer dimensions (mm): 254 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer type: Coaxial loudspeaker
• Woofer voice coil (inch): 2.5 "
• Woofer voice coil (mm): 65 mm
• Cabinet construction: Bass Reflex
• Cabinet material: 15 mm Birch Plywood, 15 mm MDF

HF:

• Horn: CD Horn
• Tweeter dimensions: 1 "
• Tweeter dimensions (mm): 25.4 mm
• Tweeter magnet: Ferrite
• Tweeter brand: Custom-made
• Tweeter voice coil: 1.75 "
• Tweeter voice coil (mm): 44.45 mm

Amplifier module (integrated):

• Amplifier: Class D
• Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
• Operating Temperature: 0 - 40 °C
• Humidity Range: < 80 % (non-condensing)
• Fuse: T4AL 250 V
• Controls: On / off switch, Rotary/push encoder
• Indicators: LC display
• Power supply: SMPS
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Power consumption: 150 W
• Power in / out: PowerCON compatible
• Line inputs: 2
• Line input connectors: 6.3 mm jack, XLR - combo
• Line thru: 2
• Line through connector: XLR
