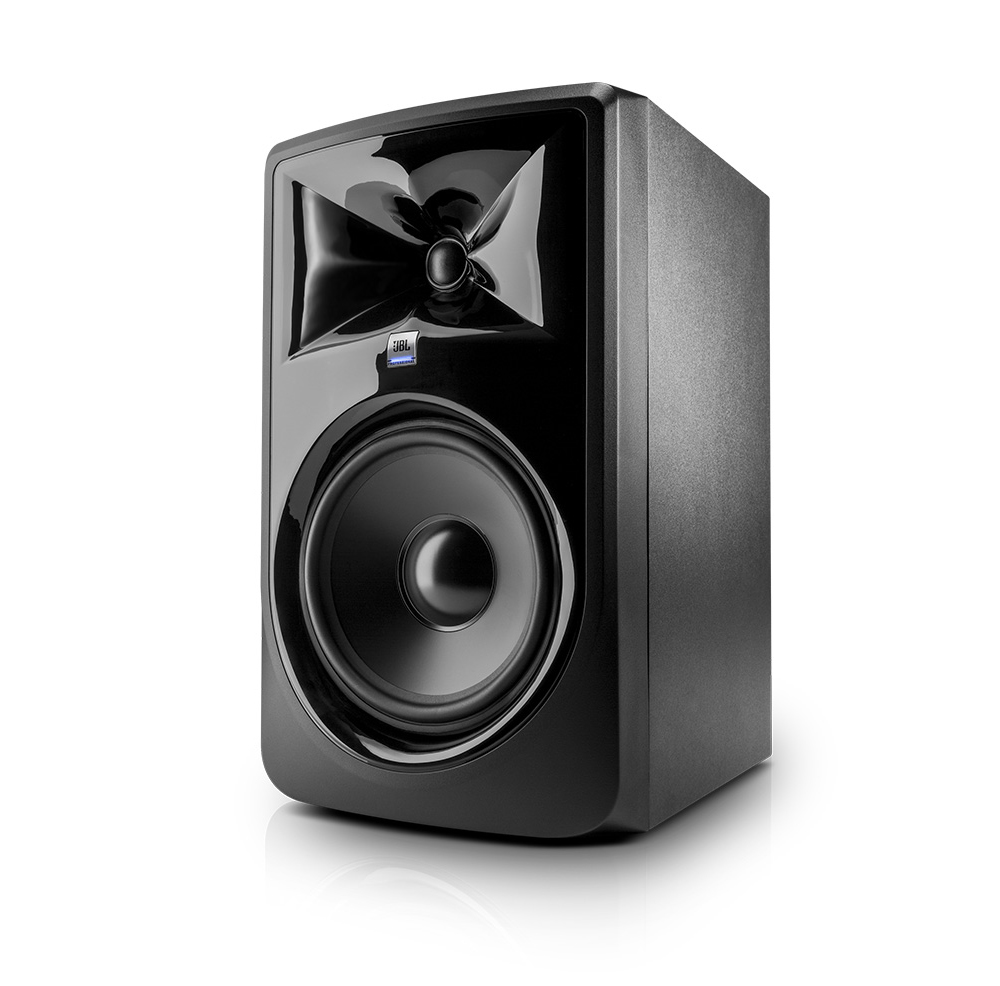

JBL LSR308P mkII

Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio

LF DRIVER SIZE 203mm (8")
HF DRIVER SIZE 25mm (1")
HF DRIVER TYPE Soft dome
CROSSOVER 1800Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT Yes
INPUT SENSITIVITY (-10dBV INPUT) 92dB / 1m
POWER CONFIGURATION Bi-amplified
HF DRIVER POWER AMP 56W, Class-D
LF DRIVER POWER AMP 56W, Class-D
FREQUENCY RESPONSE (±3dB) 45Hz – 20kHz
FREQUENCY RANGE (-10dB) 37Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB) 37Hz
MAXIMUM CONTINUOUS SPL 102dB
MAXIMUM PEAK SPL 112dB
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) +6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA <10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
SIGNAL TO NOISE RATIO 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
COVERAGE HORIZONTAL x VERTICAL 120° x 90°
ANALOG INPUT TYPES 1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL -2dB, 0dB, +2dB
BOUNDARY EQ LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE 100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE Ported
ENCLOSURE CONSTRUCTION 15mm MDF
ENCLOSURE FINISH Matte black PVC
BAFFLE CONSTRUCTION Injection-molded structural ABS
CABINET DIMENSIONS (H x W x D) 419 x 254 x 308mm (16.5" x 10" x 12.1")
DISPLAY CARTON (H x W x D) 473 x 312 x 358mm (18.6" x 12.3" x 14")
SHIPPING CARTON (H x W x D) 491 x 326 x 372mm (19.3" x 12.8" x 14.6")
NET WEIGHT 8.1 kg (17.87 lbs)
SHIPPING GROSS WEIGHT 9.4 kg (20.73 lbs)
