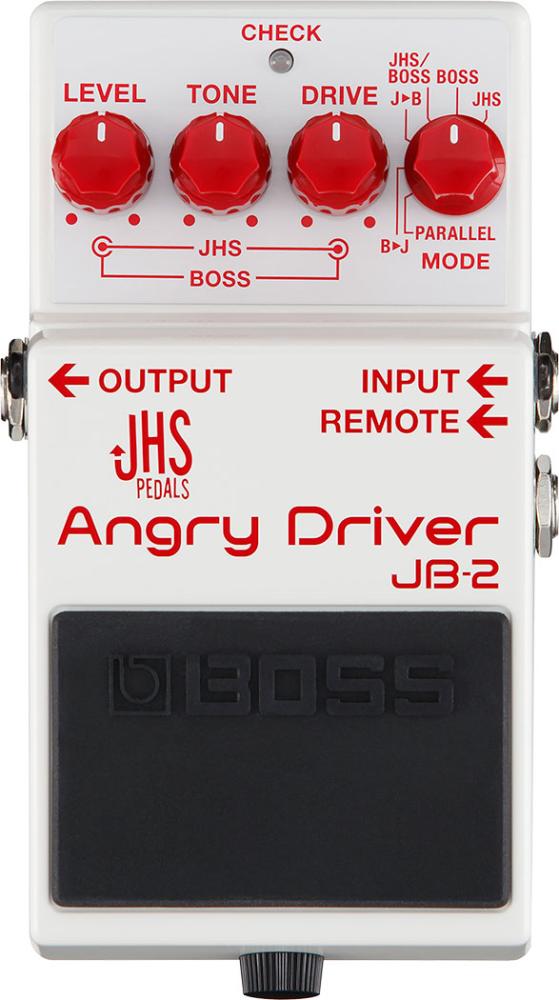

Boss JB-2 Angry Driver

BOSS AND JHS PEDALS JOIN FORCES TO CREATE A NEW DRIVE PEDAL WITH MASSIVE TONAL RANGE
To celebrate the 40th anniversary of BOSS compact pedals, BOSS and JHS Pedals have come together in a historic creative collaboration between the two industry leaders. Housed in the classic BOSS compact design, the JB-2 Angry Driver pairs the tones of the iconic BOSS BD-2 Blues Driver with JHS Pedals’ popular Angry Charlie. Working closely together, the two pedal innovators have developed an all-new combined circuit with refined sound and performance perfectly tuned for dual-mode drive operation.

The JB-2 Angry Driver features three dual-concentric knobs that provide independent drive, tone, and level control for each overdrive type. Via a six-position mode selector, you can use each overdrive independently, or combine them together in series and parallel configurations. With the ability to blend the Blues Driver’s famously expressive low-to-mid gain tones with the Angry Charlie’s aggressive rock voice in any combination, the JB-2 Angry Driver delivers unmatched range and versatility from a single overdrive pedal.

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch
MODE knob, DRIVE knob, TONE knob, LEVEL knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack, OUTPUT jack, REMOTE jack, AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)

Current Draw

50 mA

Expected battery life under continuous use

Alkaline: Approx. 9.5 hours
Carbon: Approx. 2.5 hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9 V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)
Foot switch: FS-5L, FS-6, FS-7

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

440 g
1 lb

* 0 dBu = 0.775 Vrms
