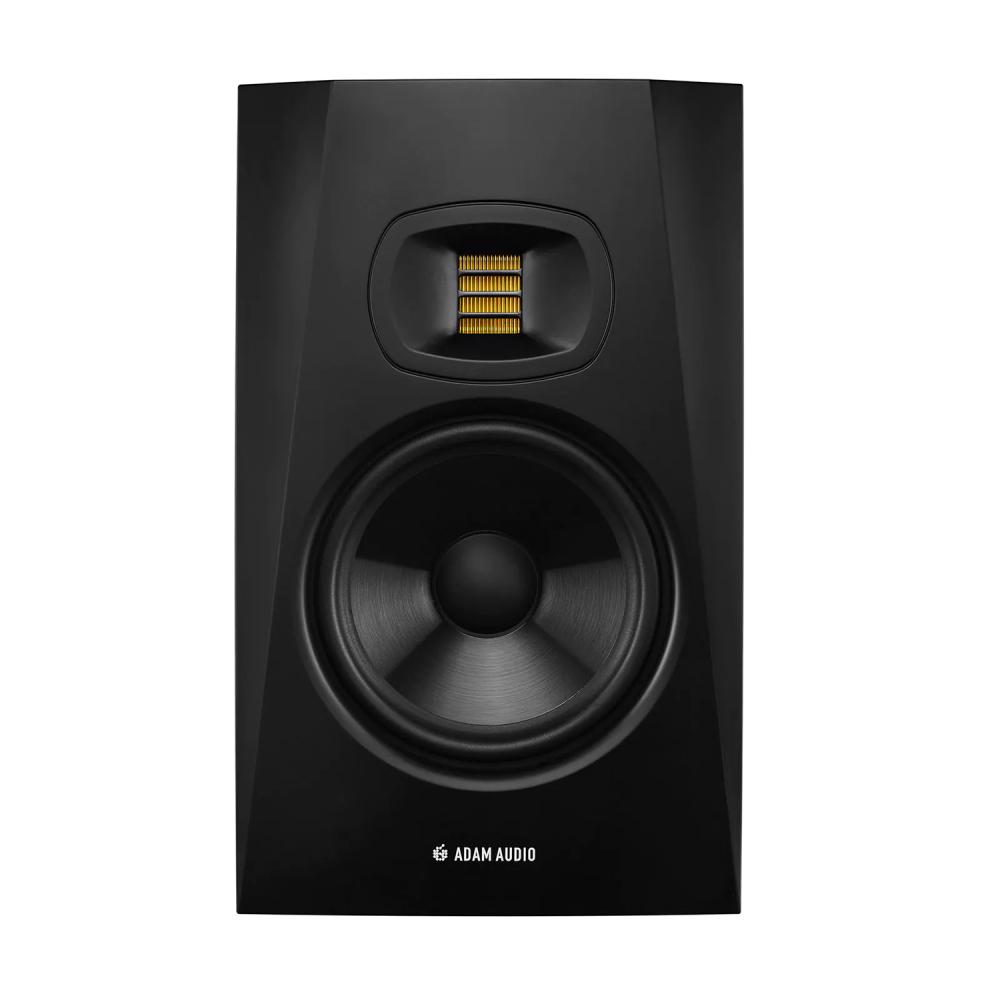

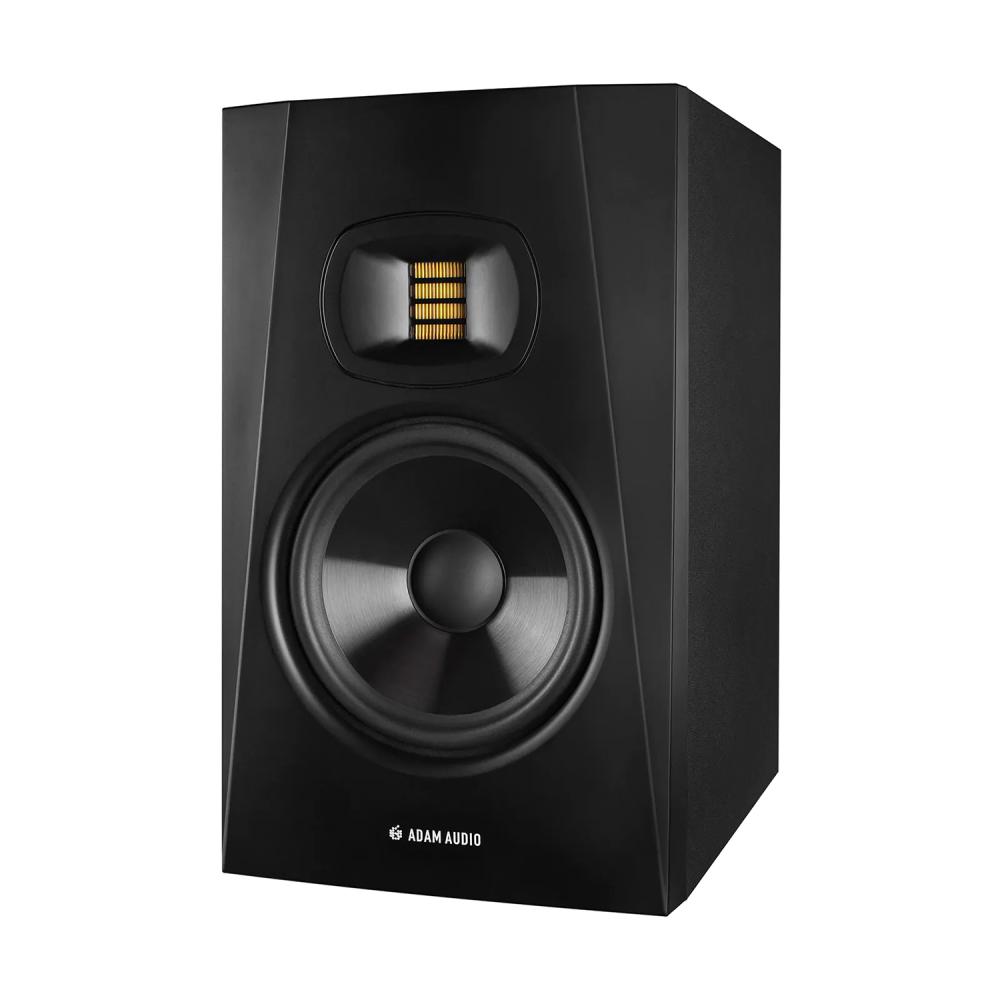

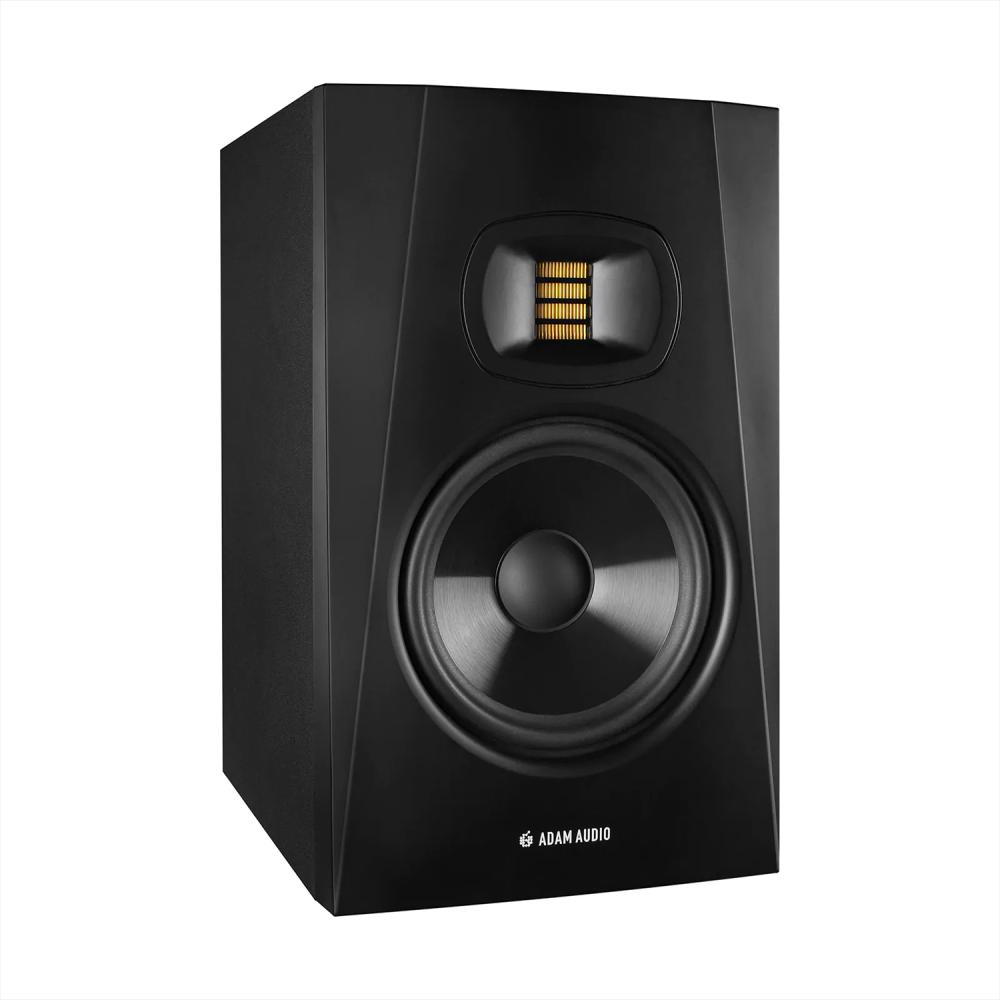

Adam T7V Active Speaker

The T7V is a two-way studio monitor designed for vertical use in a nearfield application.

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

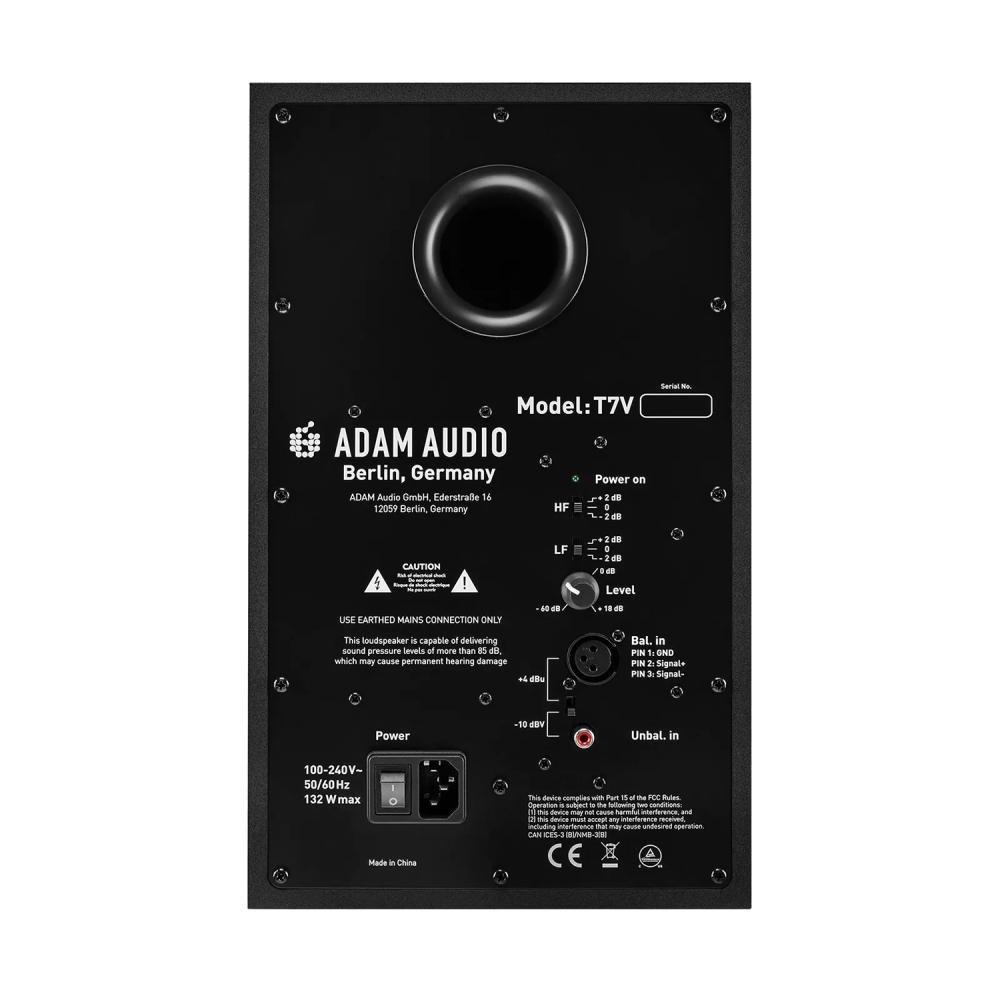

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.

State of the art technology
Adam Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

Specifications:

• Woofer: 7" Polypropylene
• Tweeter: 2420 mm² U-ART
• Waveguide: HPS
• Amplifiers: 50 + 20 W PWM amplifiers
• Input sensitivity: Switchable +4 dBu / -10 dBV
• Gain control: Yes
• High-shelf control: - 2 dB, 0 dB, +2 dB
• Low-shelf control: - 2 dB, 0 dB, +2 dB
• Inputs: XLR, RCA
• Input impedance: 10 kOhm / 20kOhm
• Frequency response: 39 Hz - 25 kHz
• THD > 80Hz: 0,50%
• Max SPL at 1 m (per pair): ≥110 dB
• Crossover frequency: 2,6 kHz
• Max power consumption: 132 W
• Weight: 7,1 kg
• Measurements: 347 x 210 x 293 mm
